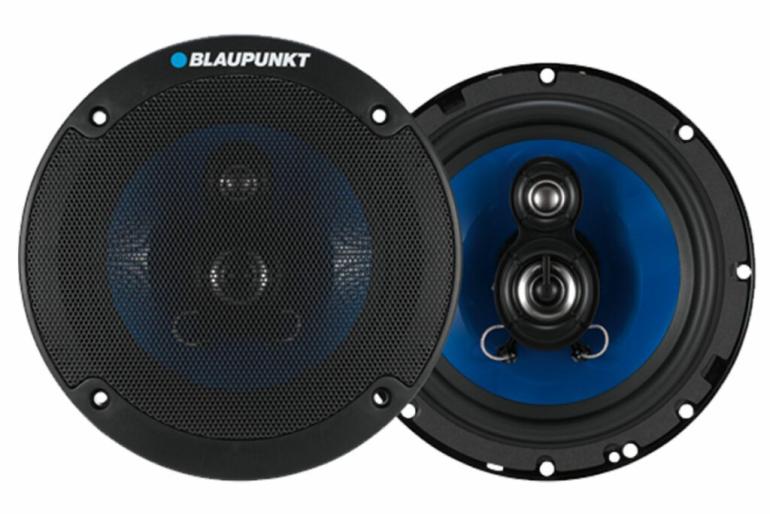

Blaupunkt ICx 663 6.6” 3-Way Triaxial Højtaler

Varenr. 2788946

Forventet leveringstid 3-10 dage

Brand: BLAUPUNKT

DKK 449,00

Blaupunkt ICx 663 6.6” 3-way triaxial system 210 watts max power højtaler er en perfekt 165mm højtaler med frontgitter kabler og monterings tilbehør

Teknisk data:

3-way triaxial højtaler
165 mm / 6.6” diameter
Tweeter with Neodymum magnet
250 Watt maximum power handling
35 Watt nominal power handling
Injected PP membrane
Foam surround
Kapton voice coils for tweeter and woofer
Magnet with EXP design causing less distorsion
Installations dybte 53 mm / 2.10”
Design gitter med metal grill
Loftsmontering er mulig
Accessories: including design grille, cables, mounting hardware and installation instructions
Tilbehør: inklusive designgitter, kabler, monteringsbeslag og installationsvejledning
Perfect price/performance ratio

Product		ICx 663
System		3-Way Triaxial
Diameter		165mm / 6.6″
Maximum power handling		250 watts
Nominal power handling		35 watts
Nominal impedance		4 ohms
Frequency response		60 – 22.000 Hz
Efficiency (2,83 V/1 m)		91 dB
Woofer	Concept	Single cone
	Cone material	Injected Polypropylen (IPP)
	Cone color	blue
	Surround material/color	Rubber / black
	Voice coil diameter/material	25mm / 1″ / Aluminum
	Voice coil layers	2
	Basket material/color	Steel / black
	Magnet material	Ferrite
	Magnet size	80 x 40 x 12mm
	Magnet cover material/color	–
	Connectors	2,8/5,2 mm
Midrange	Concept	Dome tweeter
	Diameter	13mm / 0.5″
	Cone material	Mylar
	Voice coil diameter/material	13mm / 0.5″ / Aluminum
	Voice coil layers	2
	Magnet material	Neodymum
	Magnet size	12,5 x 2mm
Tweeter	Concept	Piezo
	Diameter	15mm / 0.6″
	Cone material	Mylar
	Voice coil diameter/material	–
	Voice coil layers	2
	Magnet material	Neodymum
	Magnet size	–
Speaker cover	Cover material/color	ABS / silver
Speaker cover	Grille material/color	Metal / black

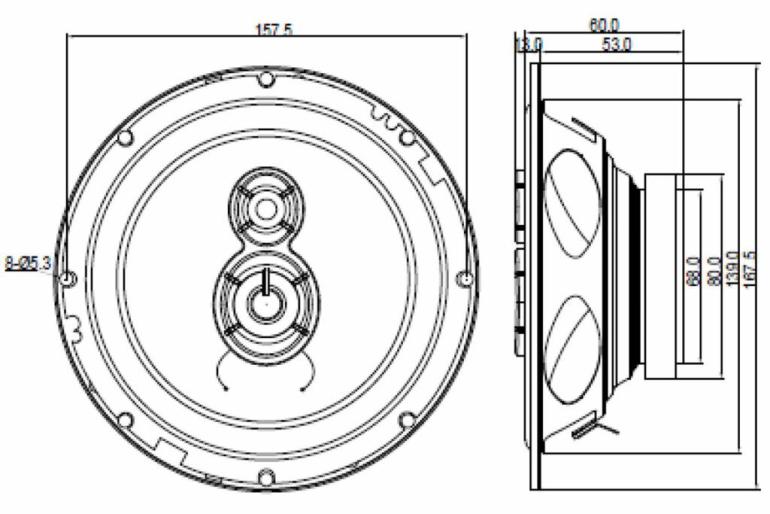

Installation depth		53 mm / 2.1”
Diameter installation hole		139 mm / 5.47”
Weight (single speaker without cover)		0,65 kg
Delivery content		2x Speakers
		2x Design grilles
		2x Speaker cables
		8x Fixation screws
		8x Pirate nuts
		User manual
		Cutting template
Packing concept		4-color gift box
No. of products in packing		1 pair / 2 pcs
